Monoceros
the Unicorn
Star chart
J2000the Unicorn
Fixed J2000 coordinates
This image was made with reference to IAU charts.View IAU original · Opens in a new tab
Image downloads

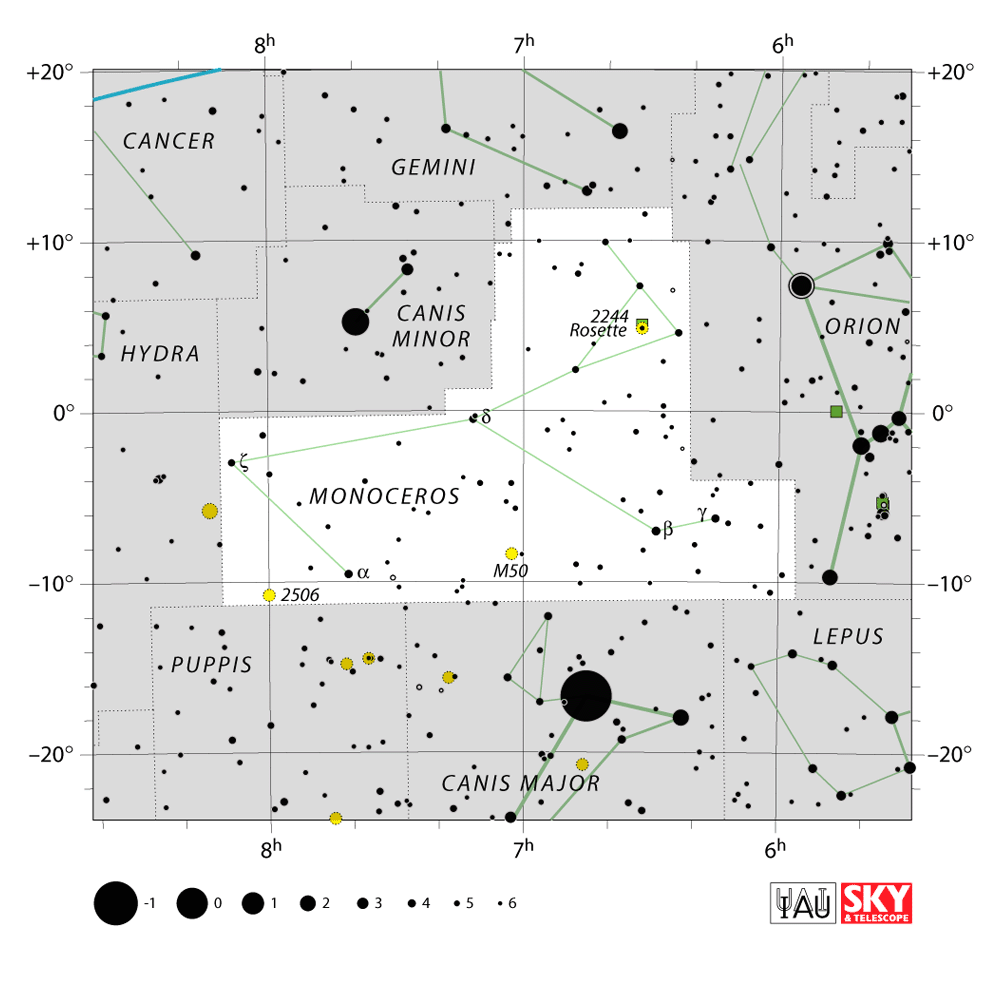

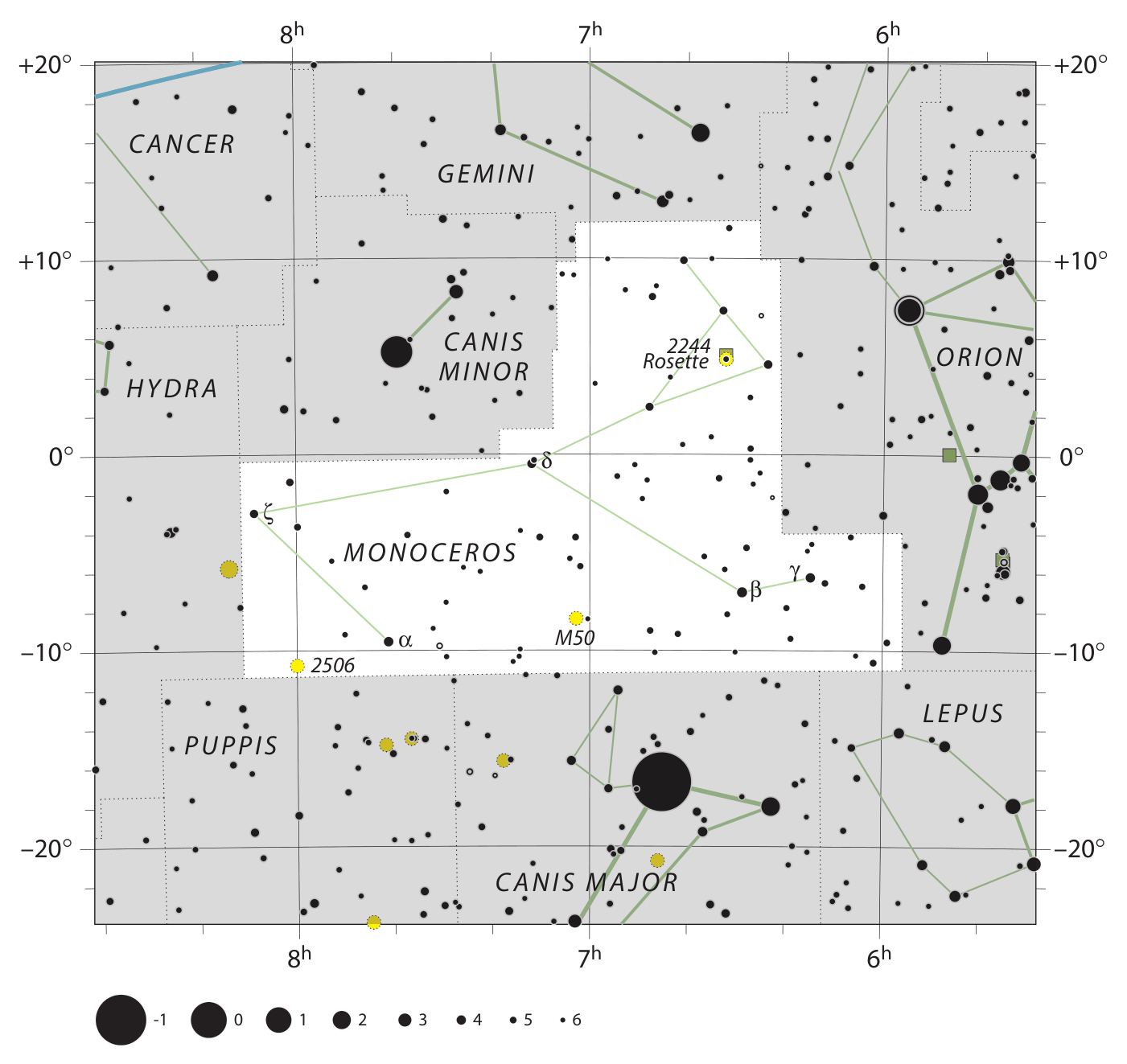

How to read this chart
Dots mark stars, and their sizes indicate brightness. Stars appear dark on light charts and light on dark charts. Green lines show a constellation pattern. The surrounding grid gives right ascension and declination.
This is a fixed reference map, rather than a view of tonight’s sky.
Read the full chart guide →Boundary coordinates
The boundary marks a sky region; it is separate from the green star pattern. These files preserve ordered coordinate points in the J2000 reference system.
Monoceros19 boundary pointsDownload TXT →
View coordinate format & sample
Right ascension uses hours, minutes and seconds. Declination is in degrees. Convert right ascension to degrees with 15 × (hours + minutes/60 + seconds/3600).
RA (h m s) | Dec (degrees) | Abbreviation 06 20 54.1633 | -0.0537102 | MON 06 21 23.5275 | 9.9455481 | MON 06 25 23.4397 | 9.9334478 | MON 06 25 29.4633 | 11.9332972 | MON 07 02 58.2756 | 11.8213453 | MON
The 0h / 24h meridian is continuous. A coordinate jump there should not be treated as a straight line across a flat map.
